We have also have white light and multiple color version for your reference,they especially suit fo rspatial decoration ,Domestic decoration hotel,garden,ceiling,floor stairs ect.

Cysylltwch Nawr
Manylion y Cynnyrch Adborth nawr

360° D18 Neon Product advantage

NODWEDDION CYNHYRCHU

-Circular tube profile supports 360° circular luminous surface, uniform luminous area without dark area, suitable for space decorative lighting;
-Free to cut any length can be rigid, flexible, plasticity, bending and pliable;
-IP67 waterproof grade, can be used outdoors, the use of silica gel material, flame retardant, corrosion resistance and UV resistance;
-50000 hours long life, 5 gwarant blynyddoedd, UL and CE certification;
-High transmittance high purity silica gel material, protection grade IP67;
-Support multiple installation methods such as hanging and surface installation.
.advantage:
compared to D25 Neon,D25 colloid weighs 570g,while D18 only 295g, N.W for a meter is around 315g,Colloidal product decreased by 50%,price is around 11usd. .Smaller bending diameter,D25 Min. bending diameter is 200mm, D18 vertical bend can reach 150mm.
Cut as your mind


360° Light-Emitting

Dimensiwn
Diameter 18mm
Color Rendering Index
Ra>90
Beam Angle
360°
Operating Ambient temperature Ta
-20-45° C [-4~113° F]
Lifespan
50,000H
Input Current/m
0.6~0.8A/M
Static Electricity
1000V. (ESD)
Gwarant
5blynyddoedd
Enery Grade
G



General Parameters

​​​

IES Data


Drawing

1,Use D18 tube,appearance white,Spray handle oil after the product process;2,Produce size ∅18mm±0.25mm.

3,The head end uses a flat cap with front wire outlet which has same size as strip;
4,Use waterproof quick wire connector for easy splicing;

Accessories color can be customized

Notice:
1. Luminous flux or CCT 2700K is 10% lower, or CCT 3000/3500K is 5% lower, for CCT 5000K/ 6500K is the same compared with 4000K.
2. Energy efficiency dass of regulation (EU)201 9/2020 is F(CRI80) for 4000K and G(CRI80) for CCT, it waries depending on CRI and CCT.
3. The transmission direction of data must be from PI to Po following the arrow printing on FPC for DMX/SPI version, and can't be made by reverse connection, otherwise the strip will be out of control or even domaged.
INSTALLATION

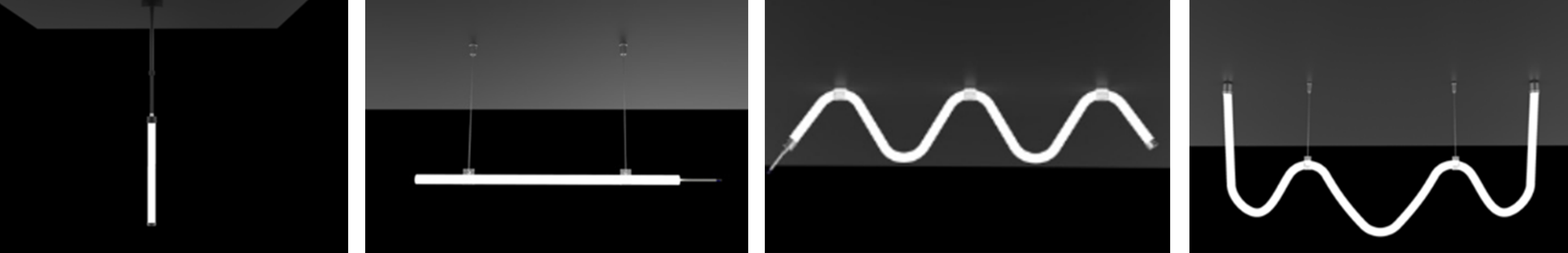

The LED neon Flex can be bendable and twistable any angle, like the following drawing; Accessory: Entry Cap, and End Cap, Mounting Clip.

.You can be creative to determine the neon display effect.

Ceiling mounting

Hanging mounting






C1: Beth yw eich maint archeb lleiaf?
A:Fel arfer MOQ yw 50m, ond rydym hefyd yn derbyn archeb fach ar gyfer llwybr.

C2:A oes archeb sampl am ddim ar gael?
A: Wrth gwrs, gallwch wirio ein hansawdd cyn ordering.If oes gennych unrhyw ofynion, cysylltwch â ni.

C3:Pa mor hir yw'r amser arweiniol?
A: Fel arfer,ein hamser arweiniol yw 7-10 Mae'n dibynnu ar faint y gorchymyn. Ond os yw'r archeb yn un brys, gallwn wneud cais am frys production.Bulk ordering take 20-25 dyddiau.

C4:A ellir addasu stribed LED?
A:Cadarn,gallwn gynhyrchu fel eich gofyniad fel LEDs,grym,hyd a level.We dal dŵr hefyd yn cynnig OEM&ODM.

C5:Beth yw eich gwarant?
A:Mae gennym ni 3 blynyddoedd a 5 gwarant blynyddoedd

C6:Ydych chi'n cyflenwi cludo môr?
A: OES,Mae gennym ein hasiantaeth llongau ein hunain FOB Guangzhou,cyflenwi FCL&LCL.
C7:A oes gan eich offer goleuo dystysgrifau CE neu fwy?
A: Oes, mae gennym dystysgrif CE ac UL, ROHS, TRWM,ETL,TUV,Cyngor Sir y Fflint,Seren ynni ac ati. Mae gennym hefyd IATF/ISO/TS 16949 tystysgrif.
C8:A yw'n bosibl rhoi ein logo ar eich cynnyrch neu becynnu cynnyrch?
A:Oes, mae gennym ffatri 6floors, croeso i chi addasu eich brand, LOGO, lliw, llawlyfr cynnyrch, pecynnu, etc.
Mae maint archeb lleiaf yn dibynnu ar wahanol fathau o stribed.
